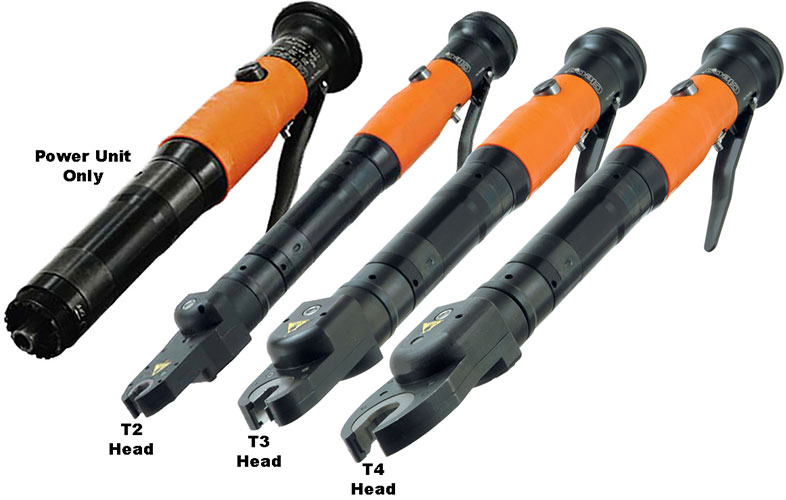

24 Series
Cleco Tube Nut Wrenches
Models
Drag your finger across the table to scroll
| Model Number | Socket Size | Torque Range | Free Speed | |
|---|---|---|---|---|
| ft.-lbs. | Nm | RPM | ||
| Power Unit Only | ||||
| 24RTA12 | — | 3.6-8.9 | 5-12 | 670 |
| Self Aligning | ||||
| 24RTA20T2 | 7/16" | 10.4-14.7 | 14-20 | 240 |
| 24RTA30T3 | 9/16" | 14.7-22.1 | 20-30 | 175 |
| 24RTA40T4 | 7/8" | 19.2-29.5 | 26-40 | 130 |
Features
- Torque range: 19-54 ft. lbs. (14-40 Nm)
- One hand, two position throttle
- External torque adjustment
- Auto alignment socket
How does it work?
Tube and hose applications, once only accessible by the use of hand tools, can now be tightened by the Cleco line of Tube Nut Wrenches at a speed that maximizes productivity. Torque repeatability is assured by the proven Clecomatic clutch and low inertia motor. These models use a single lever for the tightening of the fastener and the return of the socket to the open position. This flexibility, coupled with the proven capability of Cleco tools, greatly increases the productivity rate of the assembly line.
Make sure that the socket is set to the open position. If not, push the throttle lever down halfway to release the socket back to the open position.
Slide the tool onto the fastener and push the throttle lever down fully to run the fastener down.
To free the tool, slide the tool off of the tightened fastener and operate the throttle lever halfway to release the socket back to the open position.

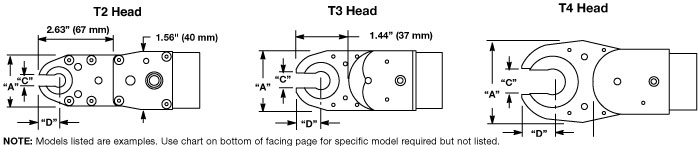

Dimensions
Drag your finger across the table to scroll
| Model Number | Length | Weight | "A" | "B" | "C" | "D" | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | lbs. | kg | in. | mm | in. | mm | in. | mm | in. | mm | |
| Power Unit Only | ||||||||||||
| 24RTA12 | 12 | 305 | 2.7 | 1.2 | — | — | — | — | — | — | — | — |
| Self Aligning | ||||||||||||
| 24RTA20T2 | 16.8 | 426 | 4.3 | 2.0 | 1.42 | 36 | 0.55 | 14 | 0.28 | 7.0 | 0.53 | 13.5 |
| 24RTA30T3 | 16.7 | 426 | 4.5 | 2.0 | 1.65 | 42 | 0.59 | 15 | 0.47 | 11.9 | 0.73 | 18.5 |
| 24RTA40T4 | 17.7 | 449 | 5.1 | 2.3 | 2.36 | 60 | 0.59 | 15 | 0.67 | 17.0 | 0.93 | 23.5 |
