H16, H30, 41, and 60 Series

Cleco Ratchet Wrenches

Clutch Type

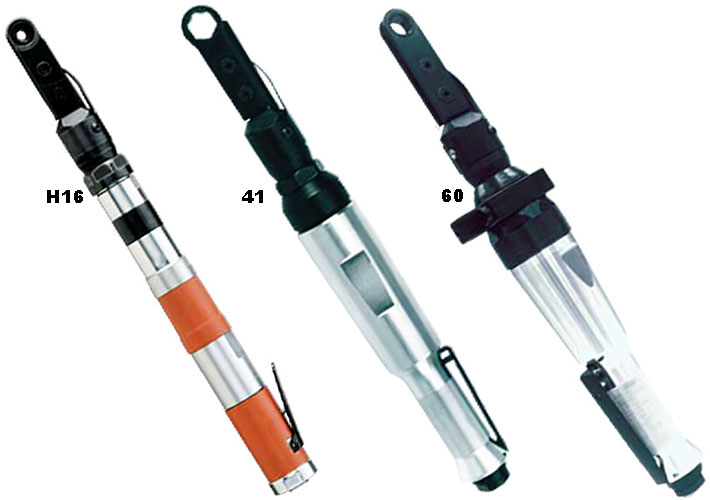

H16, H30, 41, and 60 Series Ratchet Wrenches

  Models

Drag your finger across the table to scroll

Model Number Socket Size Torque Range Free Speed
in. mm ft.-lbs. Nm RPM
1/2" Max. Socket Size
H16NDR09H15 1/2 13 10.0 13.5 130
H30NDR08H15 1/2 13 12.0 16.2 120
41NDR236H15 1/2 13 23.0 31.1 360
41NDR172H15 1/2 13 32.0 43.3 265
41NDR130H15 1/2 13 42.0 56.9 200
5/8" Max. Socket Size
H30NDR08H16 5/8 16 13.0 17.6 110
41NDR236H16 5/8 16 25.0 33.8 335
41NDR172H16 5/8 16 34.0 46.0 245
41NDR130H16 5/8 16 45.0 60.9 185
H30NDR08H18 5/8 16 18.0 24.3 105
41NDR236H18 5/8 16 29.0 39.2 315
41NDR130H18 5/8 16 52.0* 70.4 170
3/4" Max. Socket Size
H16NDR09H20 3/4 19 16.0 21.6 110
H30NDR08H20 3/4 19 19.0 25.7 100
41NDR172H20 3/4 19 42.0 56.9 215
41NDR130H20 3/4 19 56.0* 75.8 160
60NDR092HD24 3/4 19 122.0 165.3 95
15/16" Max. Socket Size
H30NDR08H25 15/16 24 22.0 29.8 70
41NDR172H25 15/16 24 53.0* 71.8 155
41NDR130H25 15/16 24 70.0* 94.8 115
1-1/2" Max. Socket Size
60NDR092HD40 1-1/2 38 212.0 287.2 60
1-15/16" Max. Socket Size
60NDR092HD48 1-15/16 49 252.0 341.4 50
2-3/8" Max. Socket Size
60NDR092HD56 2-3/8 60 306.0 415.0 40

Notes:

*WARNING: These terminations are not recommended for applications over 50 Ft. Lbs. (68 Nm) torque.

  Features

  • Torque range: Up to 306 ft. lbs. (415 Nm)
  • Clutch activated air shut-off (H16, H30, & 60 series) or air shut-off (41 series)
  • Non-Reversible

  Dimensions

Drag your finger across the table to scroll

Model Number Length Weight "A" "B" "C"
in. mm lbs. kg in. mm in. mm in. mm
1/2" Max. Socket Size
H16NDR09H15 18.9 480 4.3 2.0 15/16 23.8 9/16 14.2 3.13 79.5
H30NDR08H15 20.6 523 4.9 2.2 15/16 23.8 9/16 14.2 3.13 79.5
41NDR236H15 17.7 449 5.7 2.3 15/16 23.8 9/16 14.2 3.13 79.5
41NDR172H15 17.7 449 5.7 2.6 15/16 23.8 9/16 14.2 3.13 79.5
41NDR130H15 18.8 478 6.1 2.8 15/16 23.8 9/16 14.2 3.13 79.5
5/8" Max. Socket Size
H30NDR08H16 20.6 523 4.9 2.2 1 25.4 9/16 14.2 3.13 79.5
41NDR236H16 17.7 449 5.7 2.6 1 25.4 9/16 14.2 3.13 79.5
41NDR172H16 17.7 449 5.7 2.6 1 25.4 9/16 14.2 3.13 79.5
41NDR130H16 18.8 478 6.1 2.8 1 25.4 9/16 14.2 3.13 79.5
H30NDR08H18 20.7 526 4.9 2.2 1-1/8 28.6 9/16 14.2 3.13 79.5
41NDR236H18 17.7 449 5.8 2.6 1-1/8 28.6 9/16 14.2 3.13 79.5
41NDR130H18 18.8 478 6.1 2.8 1-1/8 28.6 9/16 14.2 3.13 79.5
3/4" Max. Socket Size
H16NDR09H20 19.1 489 4.4 2.0 1-1/4 31.8 9/16 14.2 3.13 79.5
H30NDR08H20 20.8 528 4.9 2.2 1-1/4 31.8 9/16 14.2 3.13 79.5
41NDR172H20 17.7 449 5.8 2.6 1-1/4 31.8 9/16 14.2 3.13 79.5
41NDR130H20 18.8 478 6.1 2.8 1-1/4 31.8 9/16 14.2 3.13 79.5
60NDR092HD24 27.4 697 16.9 7.7 1-1/2 38.1 7/8 22.4 6.19 157.2
15/16" Max. Socket Size
H30NDR08H25 21.0 553 5.0 2.3 1-9/16 39.7 9/16 14.2 3.25 82.5
41NDR172H25 17.8 452 5.8 2.6 1-9/16 39.7 9/16 14.2 3.25 82.5
41NDR130H25 18.9 481 6.1 2.8 1-9/16 39.7 9/16 14.2 3.25 82.5
1-1/2" Max. Socket Size
60NDR092HD40 28.4 722 17.2 7.8 2-1/2 63.5 7/8 22.4 6.69 169.9
1-15/16" Max. Socket Size
60NDR092HD48 28.9 735 17.7 8.0 3 76.2 1 25.4 6.94 176.3
2-3/8" Max. Socket Size
60NDR092HD56 29.5 749 18.0 8.2 3-1/2 88.9 1 25.4 7.25 184.2
