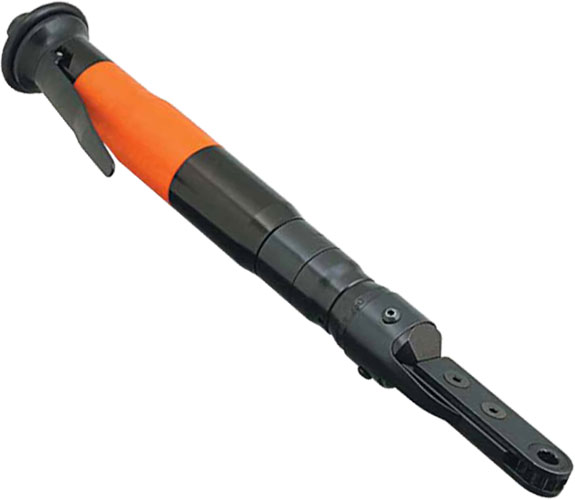

34 Series

Cleco Ratchet Wrenches

Stall Type

34 Series Ratchet Wrenches

  Models

Drag your finger across the table to scroll

Model Number Max Socket Size Max Torque Free Speed
in. mm ft.-lbs. Nm RPM
34NRS29H15 1/2 13 21.6 29.3 255
34NRS31H16 9/16 16 22.9 31.0 240
34NRS35H20 3/4 19 25.9 35.1 210
34NRS36H18 5/8 16 26.7 36.2 225
34NRS36H15 1/2 13 26.8 36.3 155
34NRS38H16 9/16 16 28.1 38.1 145
34NRS42H25 15/16 24 30.9 41.9 150
34NRS46H20 3/4 19 33.9 46.0 125
34NRS46H18 5/8 16 34.1 46.2 135
34NRS48H29 1-1/8 29 35.1 47.6 140
34NRS52H25 15/16 24 38.4 52.1 90
34NRS53H37 1-5/8 41 38.9 52.7 120
34NRS63H29 1-1/8 29 46.7 63.3 85
34NRS68H37 1-5/8 41 50.4 68.3 70

  Features

  • Torque range: Up to 50.4 ft. lbs. (68.3 Nm)
  • Stall type
  • Non-reversible

  Dimensions

Diagram showing the dimensional variables corresponding to the values A, B, and C on the table below.

Drag your finger across the table to scroll

Model Number Length Weight "A" "B" "C"
in. mm lbs. kg in. mm in. mm in. mm
34NRS29H15 16.0 406 3.7 1.7 15/16 23.8 9/16 14.2 3.13 79.5
34NRS31H16 16.0 406 3.7 1.7 1 25.4 9/16 14.2 3.13 79.5
34NRS35H20 16.2 411 3.7 1.7 1-1/4 31.8 9/16 14.2 3.13 79.5
34NRS36H18 16.1 409 3.7 1.7 1-1/8 28.6 9/16 14.2 3.13 79.5
34NRS36H15 16.8 427 3.9 1.8 15/16 23.8 9/16 14.2 3.13 79.5
34NRS38H16 16.8 427 3.9 1.8 1 25.4 9/16 14.2 3.13 79.5
34NRS42H25 16.4 417 3.8 1.7 1-9/16 39.7 9/16 14.2 3.25 82.5
34NRS46H20 17.0 432 4.0 1.8 1-1/4 31.8 9/16 14.2 3.13 79.5
34NRS46H18 16.9 429 4.0 1.8 1-1/8 28.6 9/16 14.2 3.13 79.5
34NRS48H29 16.9 429 4.0 1.8 1-13/16 46.0 5/8 15.9 3.5 88.9
34NRS52H25 17.2 437 4.1 1.8 1-9/16 39.7 9/16 14.2 3.25 82.5
34NRS53H37 17.3 439 4.4 2.0 2-11/32 59.5 5/8 15.9 3.75 95.3
34NRS63H29 17.7 450 4.2 1.9 1-13/16 46.0 5/8 15.9 3.5 88.9
34NRS68H37 18.1 460 4.6 2.1 2-11/32 59.5 5/8 15.9 3.75 95.3
