24 Series

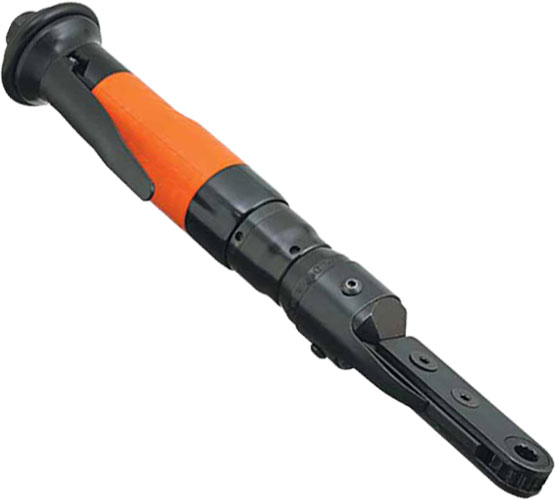

Cleco Ratchet Wrenches
Stall Type
Models
Drag your finger across the table to scroll
| Model Number | Socket Size | Torque Range | Free Speed | ||
|---|---|---|---|---|---|
| in. | mm | ft.-lbs. | Nm | RPM | |
| 24NRS15A13 | 7/16 | 11 | 11.0 | 14.9 | 265 |
| 24NRS15A12 | 3/8 | 10 | 11.1 | 15.0 | 285 |
| 24NRS20H15 | 1/2 | 13 | 14.8 | 20.1 | 305 |
| 24NRS21H16 | 9/16 | 16 | 15.4 | 20.9 | 285 |
| 24NRS23A13 | 7/16 | 11 | 17.2 | 23.3 | 145 |
| 24NRS23H15 | 1/2 | 13 | 17.3 | 23.5 | 170 |
| 24NRS23H20 | 3/4 | 19 | 17.5 | 23.7 | 250 |
| 24NRS24H16 | 9/16 | 16 | 17.7 | 24.0 | 155 |
| 24NRS24H18 | 5/8 | 16 | 18.0 | 24.4 | 265 |
| 24NRS24A12 | 3/8 | 10 | 18.3 | 24.8 | 155 |
| 24NRS29H18 | 5/8 | 16 | 21.4 | 29.0 | 145 |
| 24NRS29H25 | 15/16 | 24 | 21.5 | 29.1 | 180 |
| 24NRS30H20 | 3/4 | 19 | 22.0 | 29.8 | 135 |
Features
- Torque range: Up to 50.4 ft. lbs. (68.3 Nm)
- Stall type
- Non-reversible

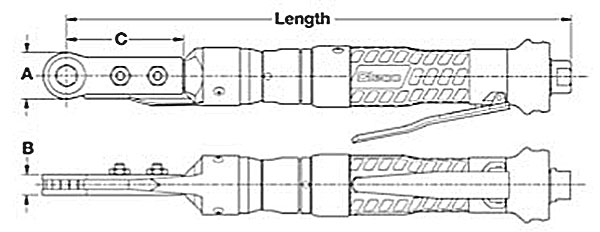

Dimensions
Drag your finger across the table to scroll
| Model Number | Length | Weight | "A" | "B" | "C" | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | lbs. | kg | in. | mm | in. | mm | in. | mm | |
| 24NRS15A13 | 13.4 | 340 | 2.7 | 1.2 | 13/16 | 20.6 | 1/2 | 12.7 | 2.88 | 73.2 |
| 24NRS15A12 | 13.4 | 340 | 2.7 | 1.2 | 3/4 | 19.0 | 1/2 | 12.7 | 2.88 | 73.2 |
| 24NRS20H15 | 14.0 | 356 | 2.9 | 1.3 | 15/16 | 23.8 | 9/16 | 14.2 | 3.13 | 79.5 |
| 24NRS21H16 | 14.0 | 356 | 3.0 | 1.3 | 1 | 25.4 | 9/16 | 14.2 | 3.13 | 79.5 |
| 24NRS23A13 | 14.2 | 361 | 2.9 | 1.3 | 13/16 | 20.6 | 1/2 | 12.7 | 2.88 | 73.2 |
| 24NRS23H15 | 14.8 | 376 | 3.1 | 1.4 | 15/16 | 23.8 | 9/16 | 14.2 | 3.13 | 79.5 |
| 24NRS23H20 | 14.2 | 361 | 3.0 | 1.4 | 1-1/4 | 31.8 | 9/16 | 14.2 | 3.13 | 79.5 |
| 24NRS24H16 | 14.8 | 376 | 3.2 | 1.4 | 1 | 25.4 | 9/16 | 14.2 | 3.13 | 79.5 |
| 24NRS24H18 | 14.1 | 358 | 3.0 | 1.4 | 1-1/8 | 28.6 | 9/16 | 14.2 | 3.13 | 79.5 |
| 24NRS24A12 | 14.2 | 361 | 2.9 | 1.3 | 3/4 | 19.0 | 1/2 | 12.7 | 2.88 | 73.2 |
| 24NRS29H18 | 14.9 | 378 | 3.2 | 1.5 | 1-1/8 | 28.6 | 9/16 | 14.2 | 3.13 | 79.5 |
| 24NRS29H25 | 14.4 | 366 | 3.1 | 1.4 | 1-9/16 | 39.7 | 9/16 | 14.2 | 3.25 | 82.5 |
| 24NRS30H20 | 14.9 | 378 | 3.2 | 1.5 | 1-1/4 | 31.8 | 9/16 | 14.2 | 3.13 | 79.5 |
