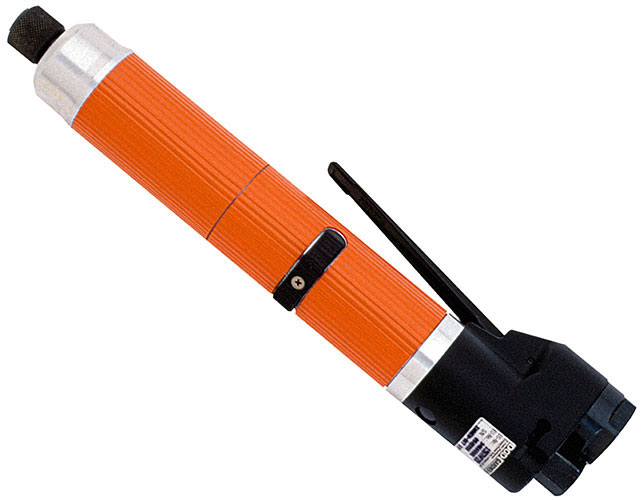

C Series STHFC and STHF
Cleco Pulse Nutrunners
Inline - Reversible
Models
Drag your finger across the table to scroll
| Model Number | Drive Type | Torque Range | Free Speed | Weight | Air Consumption | ||||
|---|---|---|---|---|---|---|---|---|---|
| Ft.Lbs. | Nm | RPM | lbs. | kg | NPT | Hose I.D. | SCFM | ||
| C Series - Inline - Push-to-Start | |||||||||
| 7STHFA55Q | 1/4" QC | 1.9-4.9 | 2.6-6.6 | 5500 | 1.8 | 0.83 | 1/8" | — | 7.0 |
| 35STHFA40Q | 7/16" QC | 12-26 | 15-35 | 4000 | 3.1 | 1.4 | 1/4" | 3/8" | 15.9 |
| 35STHFA404 | 1/2" Sq.Dr. | 12-26 | 15-35 | 4000 | 2.9 | 1.3 | 1/4" | 3/8" | 15.9 |
| C Series - Inline - Lever | |||||||||
| 7STHFC55Q | 1/4" QC | 1.9-4.9 | 2.6-6.6 | 5500 | 2.1 | 0.93 | 1/8" | — | 7.0 |
| 15STHFC40Q | 1/4" QC | 3.6-11 | 5.0-15 | 4000 | 2.4 | 1.1 | 1/4" | 3/8" | 16.5 |
| 35STHFC40Q | 7/16" QC | 12-26 | 15-35 | 4000 | 3.3 | 1.5 | 1/4" | 3/8" | 15.9 |
| 35STHFC404 | 1/2" Sq.Dr. | 12-26 | 15-35 | 4000 | 3.3 | 1.5 | 1/4" | 3/8" | 15.9 |
| 15STHC40Q | 1/4" QC | 3.6-11 | 5.0-15 | 3000 | 2.4 | 1.1 | 1/4" | 3/8" | 16.5 |
Notes:
Standard Equipment:
- Suspension bail and torque adjusting wrench
- Torque signal port (pistol grip models only)
General:
Tool performance rated @ 87 psi (6 bar) air pressure.
Features
- Torque Range: 1.9 - 26 Ft. Lbs (2.6 - 35 Nm)
- Bolt Size: M5(#10) – M8(3/8")
- Hydraulic pulse shut-off
- Motor govenor equipped
- External torque adjustment
- External speed control
- Reversible
- Oilless blades
- Torque signal port
Dimensions
Dimensions currently unavailable. For product weights, see Models table.
