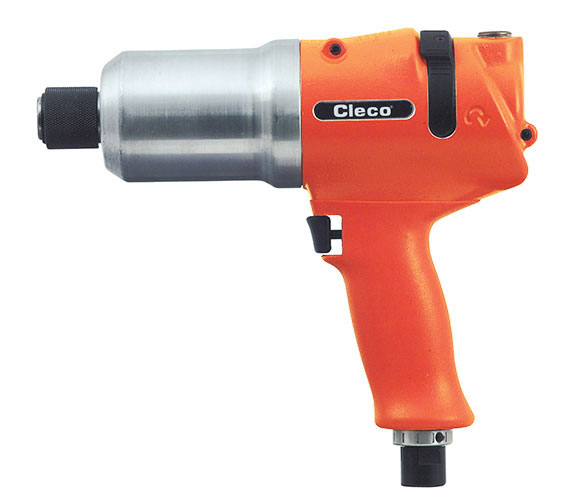

C Series PTHC and PTHFC
Cleco Pulse Nutrunners
Pistol Grip - Reversible
Models
Drag your finger across the table to scroll
| Model Number | Drive Type | Torque Range | Free Speed | Weight | Air Consumption | ||||
|---|---|---|---|---|---|---|---|---|---|
| Ft.Lbs. | Nm | RPM | lbs. | kg | NPT | Hose I.D. | SCFM | ||
| C Series - Pistol Grip - Shut-Off Models | |||||||||
| 140PTHC25Q | 7/16" QC | 74-103 | 100-140 | 2500 | 5.7 | 2.6 | 3/8" | 1/2" | 25.4 |
| 160PTHC256 | 3/4" Sq.Dr. | 74-118 | 100-160 | 2500 | 5.7 | 2.6 | 3/8" | 1/2" | 25.4 |
| C Series - Pistol Grip - Shut-Off Models - Trigger Throttle | |||||||||
| 250PTHFC226 | 3/4" Sq.Dr. | 118-184 | 160-250 | 2200 | 8.8 | 4.0 | 3/8" | 1/2" | 33.5 |
| 400PTHFC206 | 3/4" Sq.Dr. | 185-295 | 250-400 | 2000 | 11.7 | 5.3 | 3/8" | 1/2" | 33.5 |
Notes:
Standard Equipment:
- Suspension bail and torque adjusting wrench
- Torque signal port (pistol grip models only)
General:
Tool performance rated @ 87 psi (6 bar) air pressure.
Features
- Torque Range: 74 - 295 Ft. Lbs (100 - 400 Nm)
- Bolt Size: M12(1/2") – M20(3/4")
- Hydraulic pulse shut-off
- Motor govenor equipped
- External torque adjustment
- External speed control
- Reversible
- Oilless blades
- Torque signal port
Dimensions
Dimensions currently unavailable. For product weights, see Models table.
