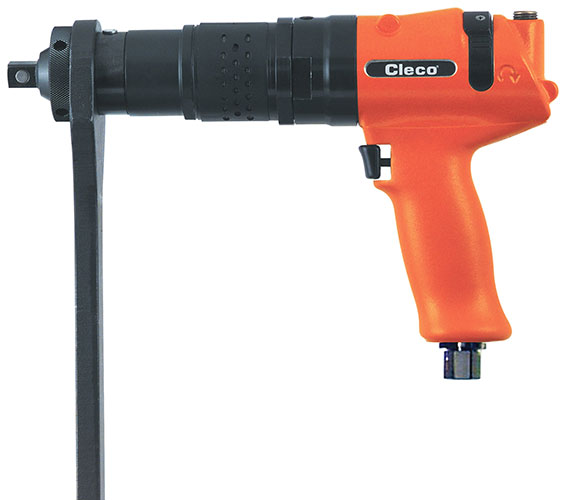

64 Series
Cleco Swingbar Nutrunners
Pistol Grip - Selectork Option
Models
Drag your finger across the table to scroll
| Model Number | Torque Range | Drive Size | Free Speed | Air Consumption | ||||
|---|---|---|---|---|---|---|---|---|
| Non-Selectork | Selectork | ft.-lbs. | Nm | RPM | Air Inlet NPT | Min. Hose ID | SCFM | |
| Pistol Grip - Trigger Start - Reversible | ||||||||
| 64TTS34D4 | 64TTK34D4 | 19-25 | 26-34 | 1/2" | 725 | 3/8" | 1/2" | 60 |
| 64TTS44D4 | 64TTK44D4 | 24-32 | 33-44 | 1/2" | 570 | 3/8" | 1/2" | 60 |
| 64TTS55D4 | 64TTK55D4 | 30-41 | 41-55 | 1/2" | 445 | 3/8" | 1/2" | 60 |
| 64TTS75D4 | 64TTK75D4 | 41-55 | 56-75 | 1/2" | 340 | 3/8" | 1/2" | 60 |
| 64TTS90D4 | 64TTK90D4 | 50-66 | 68-90 | 1/2" | 270 | 3/8" | 1/2" | 60 |
| 64TTS110D4 | 64TTK110D4 | 61-81 | 83-110 | 1/2" | 225 | 3/8" | 1/2" | 60 |
| 64TTS125D4 | 64TTK125D4 | 69-92 | 94-125 | 1/2" | 200 | 3/8" | 1/2" | 60 |
| 64TTS140D4 | 64TTK140D4 | 77-103 | 104-140 | 1/2" | 180 | 3/8" | 1/2" | 60 |
| 64TTS150D6 | 64TTK150D6 | 83-111 | 113-150 | 3/4" | 160 | 3/8" | 1/2" | 60 |
| 64TTS175D6 | 64TTK175D6 | 97-129 | 131-175 | 3/4" | 135 | 3/8" | 1/2" | 60 |
| 64TTS205D6 | 64TTK205D6 | 113-151 | 154-205 | 3/4" | 115 | 3/8" | 1/2" | 60 |
| 64TTS255D6 | 64TTK255D6 | 141-188 | 191-255 | 3/4" | 95 | 3/8" | 1/2" | 60 |
| 64TTS345D6 | 64TTK345D6 | 191-254 | 259-345 | 3/4" | 70 | 3/8" | 1/2" | 60 |
| 64TTS425D6 | 64TTK425D6 | 235-313 | 319-425 | 3/4" | 55 | 3/8" | 1/2" | 60 |
| 64TTS570D6 | 64TTK570D6 | 315-420 | 428-570 | 3/4" | 42 | 3/8" | 1/2" | 60 |
| 64TTS640D8 | 64TTK640D8 | 354-472 | 480-640 | 1" | 32 | 3/8" | 1/2" | 60 |
| 64TTS750D8 | 64TTK750D8 | 415-553 | 563-750 | 1" | 27 | 3/8" | 1/2" | 60 |
| 64TTS930D8 | 64TTK930D8 | 514-686 | 698-930 | 1" | 22 | 3/8" | 1/2" | 60 |
| 64TTS1260D8 | 64TTK1260D8 | 697-929 | 945-1260 | 1" | 16 | 3/8" | 1/2" | 60 |
| 64TTS1475D8 | 64TTK1475D8 | 816-1088 | 1106-1475 | 1" | 14 | 3/8" | 1/2" | 60 |
| 64TTS1820D8 | 64TTK1820D8 | 1007-1342 | 1365-1820 | 1" | 11 | 3/8" | 1/2" | 60 |
| 64TTS1985D8 | 64TTK1985D8 | 1098-1464 | 1489-1985 | 1" | 10 | 3/8" | 1/2" | 60 |
| 64TTS3850D12 | 64TTK3850D12 | 2128-2837 | 2888-3850 | 1-1/2" | 5 | 3/8" | 1/2" | 60 |
Features
- Torque range: 19-2837 ft. lbs. (26-3850 Nm)
- Pistol grip
- Trigger start
- Sliding knob reverse
- Swingbar
- Selectork adjustment allows air pressure regulation at the tool for individual performance from a common air line (Selectork models only)
Dimensions
Drag your finger across the table to scroll
| Model Number | Length | Weight* | |||
|---|---|---|---|---|---|
| Non-Selectork | Selectork | in. | mm | lbs. | kg |
| Pistol Grip - Trigger Start - Reversible | |||||
| 64TTS34D4 | 64TTK34D4 | 11.5 | 290.8 | 6.3 | 2.9 |
| 64TTS44D4 | 64TTK44D4 | 11.5 | 290.8 | 6.3 | 2.9 |
| 64TTS55D4 | 64TTK55D4 | 11.5 | 290.8 | 6.3 | 2.9 |
| 64TTS75D4 | 64TTK75D4 | 11.5 | 290.8 | 6.3 | 2.9 |
| 64TTS90D4 | 64TTK90D4 | 11.5 | 290.8 | 6.3 | 2.9 |
| 64TTS110D4 | 64TTK110D4 | 11.5 | 290.8 | 6.3 | 2.9 |
| 64TTS125D4 | 64TTK125D4 | 11.5 | 290.8 | 6.3 | 2.9 |
| 64TTS140D4 | 64TTK140D4 | 11.5 | 290.8 | 6.3 | 2.9 |
| 64TTS150D6 | 64TTK150D6 | 12.5 | 316.2 | 8.2 | 3.7 |
| 64TTS175D6 | 64TTK175D6 | 12.5 | 316.2 | 8.2 | 3.7 |
| 64TTS205D6 | 64TTK205D6 | 12.5 | 316.2 | 8.2 | 3.7 |
| 64TTS255D6 | 64TTK255D6 | 12.5 | 316.2 | 8.2 | 3.7 |
| 64TTS345D6 | 64TTK345D6 | 12.5 | 316.2 | 8.2 | 3.7 |
| 64TTS425D6 | 64TTK425D6 | 12.5 | 316.2 | 8.2 | 3.7 |
| 64TTS570D6 | 64TTK570D6 | 13.0 | 328.9 | 8.6 | 3.9 |
| 64TTS640D8 | 64TTK640D8 | 15.9 | 404.1 | 14.5 | 6.6 |
| 64TTS750D8 | 64TTK750D8 | 15.9 | 404.1 | 14.5 | 6.6 |
| 64TTS930D8 | 64TTK930D8 | 15.9 | 404.1 | 14.5 | 6.6 |
| 64TTS1260D8 | 64TTK1260D8 | 15.9 | 404.1 | 14.5 | 6.6 |
| 64TTS1475D8 | 64TTK1475D8 | 15.9 | 404.1 | 14.5 | 6.6 |
| 64TTS1820D8 | 64TTK1820D8 | 15.9 | 404.1 | 14.5 | 6.6 |
| 64TTS1985D8 | 64TTK1985D8 | 15.9 | 404.1 | 14.5 | 6.6 |
| 64TTS3850D12 | 64TTK3850D12 | 21.5 | 546.1 | 32.2 | 14.6 |
| Notes | * - Weight without reaction bar | ||||
